isuperviseapplication.h File Reference

Interface against a task that supervise that an executable is running. More...

#include <algorithm>
#include <atomic>
#include <string>
#include <string_view>
#include <vector>

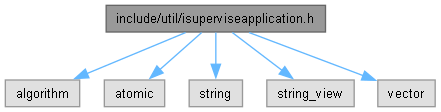

Include dependency graph for isuperviseapplication.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	util::supervise::ISuperviseApplication
	Supervise an executable application. More...

Namespaces
namespace	util
	Main namespace for the util library.
namespace	util::xml
	The xml namespace is used for XML related classes and functions.

Enumerations
enum class	util::supervise::ApplicationState : uint8_t { Stopped = 0 , Running = 1 , Failing = 2 , Ready = 3 }
	The supervisor state. More...
enum class	util::supervise::ApplicationStartup : uint8_t { Manual = 0 , Once = 1 , Automatic = 2 }
	Defines the type of startup for tha tas. More...
enum class	util::supervise::ApplicationPriority : uint8_t {   Realtime , High , AboveNormal , Normal ,   BelowNormal , Idle }
	Defines the priority uses when it is running. More...

Detailed Description

Interface against a task that start, supervise and stop an executable. It belongs to a Supervise Master which is a list of applications that should be supervised.

Enumeration Type Documentation

ApplicationPriority

enum class util::supervise::ApplicationPriority : uint8_t

strong

Defines the priority the application uses when it is running. Background task should use Idle priority or High priority. GUI task should use Normal priority. Realtime should not be used as this may hang the computer.

Enumerator
Realtime	Realtime task. Avoid to use this priority.
High	High priority.
AboveNormal	Above normal. Questionable usage.
Normal	Typical GUI applications uses this priority.
BelowNormal	Below normal. Questionable usage.
Idle	Typical for most background task. Recommended usage.

ApplicationStartup

enum class util::supervise::ApplicationStartup : uint8_t

strong

The startup mode is set to each application and defines how it start, stop and being supervised.

In the Manual mode, the application is started when it is taken in-service by a remote application. If it is taken out-of-service, it stops. If it exit before it is taken out-of-service, the state is set to ApplicationState::Ready.

In the Once mode, the application only run once at startup. It is very similar to the Manual mode but it is set to in-service at startup.

In the Automatic mode, the application is started at startup and then checked that it is running. If the application stops, it will be restarted. Note that the restart is delayed 2-10 seconds. If number of restarts reach a maximum limit, it will stop restarting and a critical log event will be generated.

Enumerator
Manual	Manual start and stop of the application.
Once	Starts only one time.
Automatic	Starts and restarts if stopped.

ApplicationState

enum class util::supervise::ApplicationState : uint8_t

strong

Enumerator
Stopped	Application is (manually) stopped.
Running	Application is running.
Failing	Application is failing (not running).
Ready	Application is ready (not running).
